system reacts only on the direct use of the urinal (it evaluates a changes, which are proceed within the urinal by the liquid (urine) flow)
system doesn´t react on the standing and not even on the passing through persons
adjustable flushing time from 0,5 to 15,5 sec.
adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
parameters adjustment by SLD 04 remote control (without the necessity to demount an urinal from the wall – acoustic adjustment indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the ball valve
radar flushing unit recharges a water to the siphon after each flushing
Operating data:
Necessary instalation sparing for the instalation of mounting box to the wall: approx. 150 x 150 x 80 mm
Operating voltage: 24V DC
Power input: 0,8 W (off status), 10 W (on status)
Flow pressure: 0,1 – 0,8 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: special outlet fitting with a rubber seal
Specification of delivery:

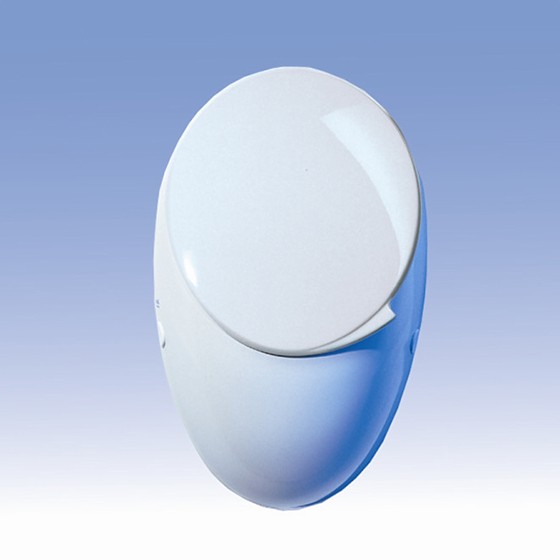

SLP 14R – supply No. 01144 – ceramic urinal with an integrated radar sensor and electronics; plastic mounting box with a brass screw-coupling, electromagnetic valve (1 pc.) and ball valve with a filter; special outlet fitting with a rubber seal; waste siphon; mounting set
